Feature

· Fast Target Acquisition: 6 MOA Dot Delivers Quick and Intuitive Target Pickup Ideal for Close Range Speed Focused Shooting Scenarios

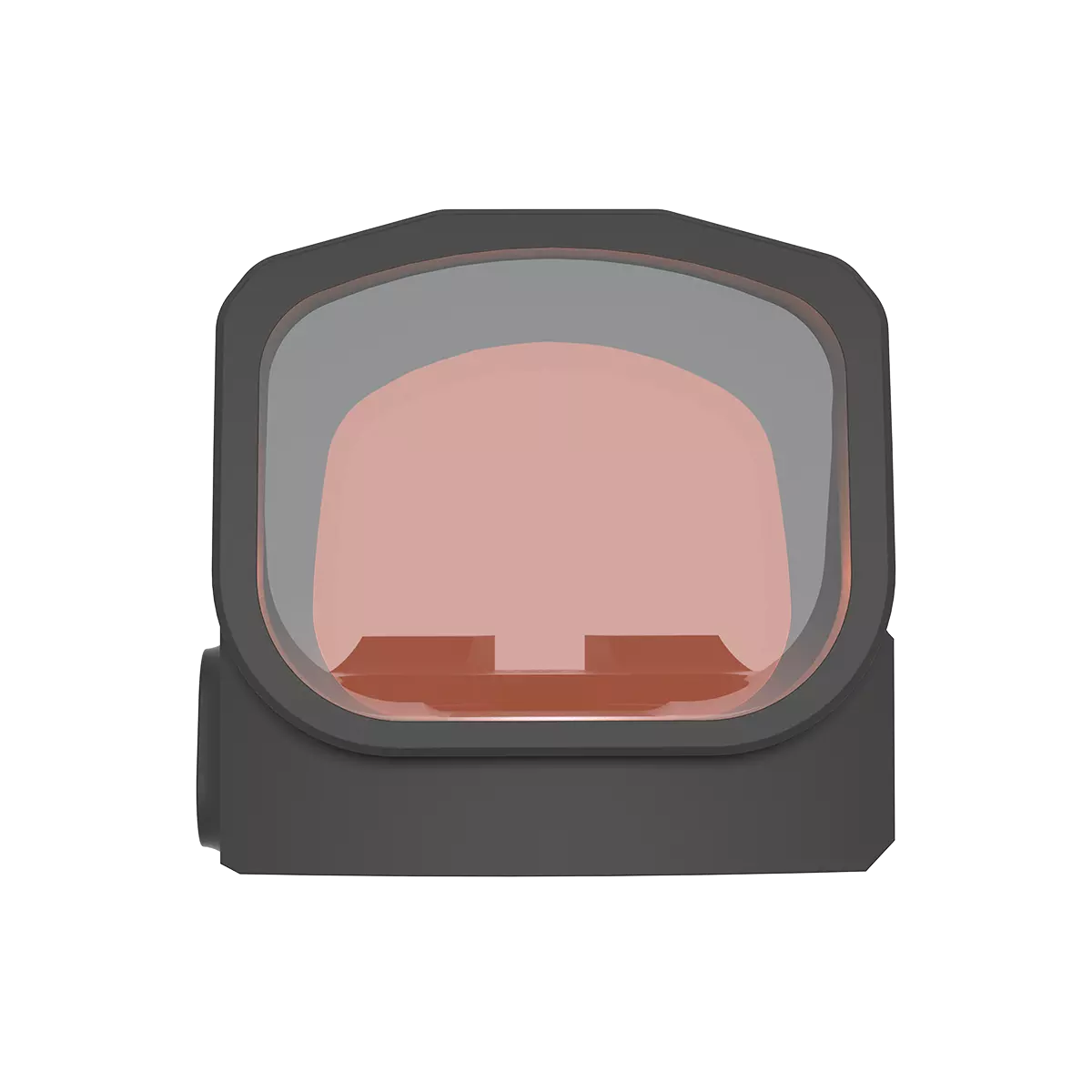

· Wide Field Clarity: 24x29 mm Large Window Provides Clear Sight Picture for Precise Target Tracking and Smooth Tactical Transitions

· Rugged Zero Stability: 7075-T6 Aluminum Alloy with 1500G Shockproof Construction Ensures Strong Impact Resistance and Maintains Zero

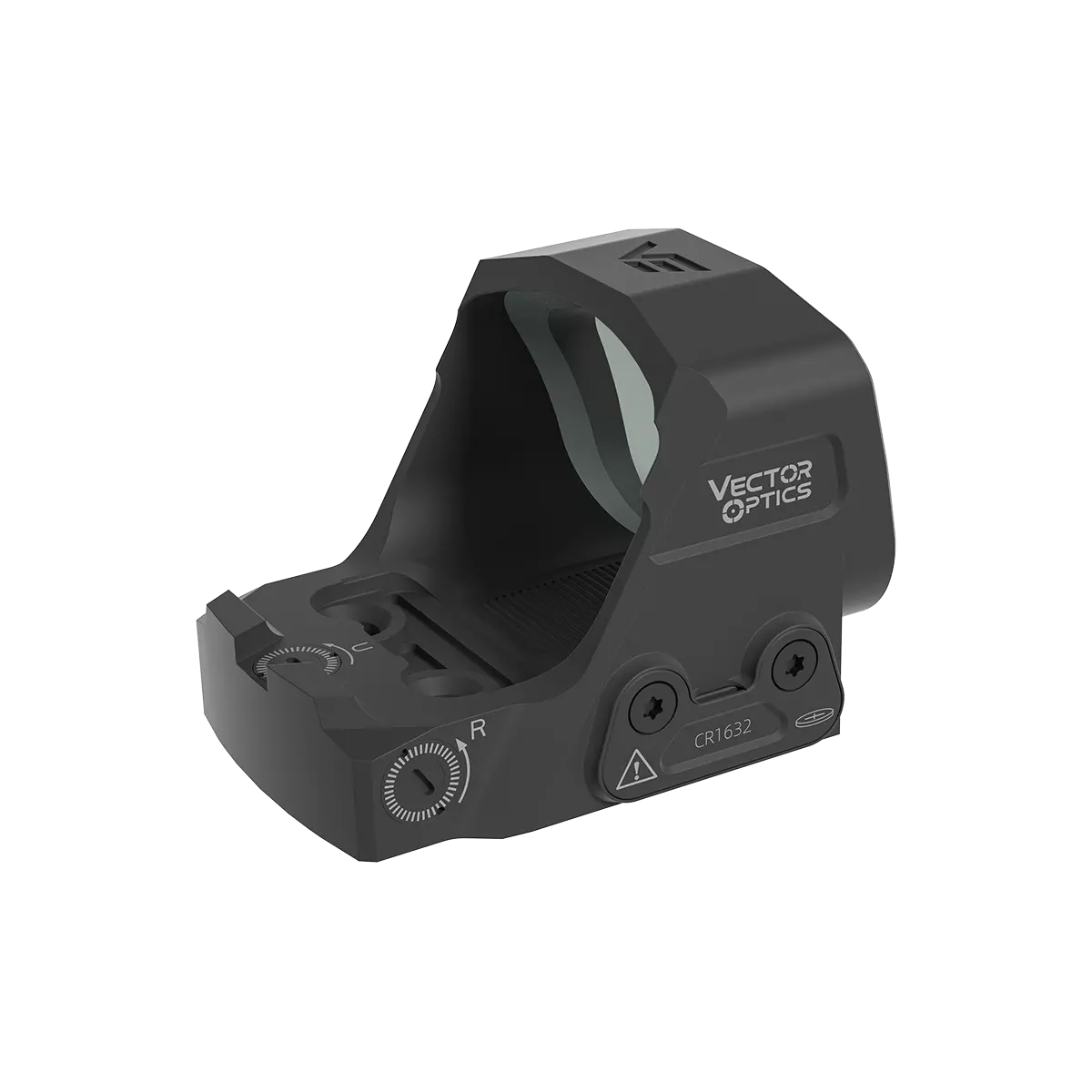

· Quick Battery Access: Side Loading Battery Design Enables Convenient Fast Replacement without Re-Zeroing Required for Continuous Use

· Broad Platform Compatibility: MGT Footprint Compatible w/ the RMSc / SMS Pattern Supports GLOCK® 43X/48 MOS and Canik® TP9

Specification

See our Terminology Guide for detailed explanations of each specification.

Specification	Details
Magnification:	N/A
Window Lens Size:	24x29 mm / 0.94x1.14 in
Parallax:	Free (≤ 2MOA)
Parallax Setting:	33 yards
Dot Size:	6 MOA
Dot/ Reticle Color:	Red
Sensor:	Motion Sensor (10mins)
Click Value:	1 MOA
Elevation Adjustment Range:	≥ 100 MOA
Windage Adjustment Range:	≥ 100 MOA
Footprint:	MGT
Mounting Rail:	Weaver
Illumination Setting:	9 Daytime & 2 Night Vision
Battery Type (Not Include):	CR1632
Runtime:	20,000H

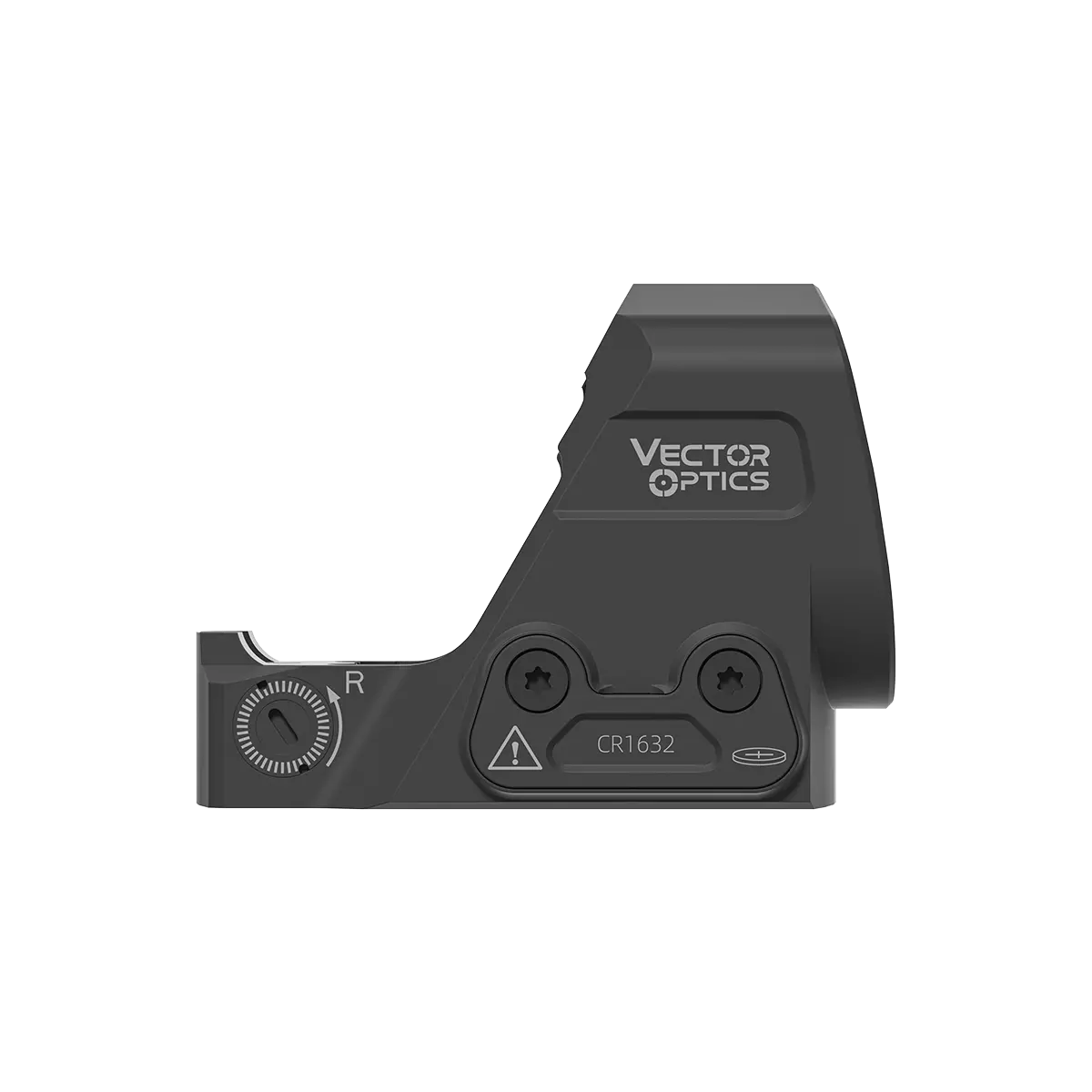

Battery Placement:	Side Loading
Waterproof:	IPX7
Shockproof:	1500 G
Working Temperature:	-20 ~ +60° C / 2H
Housing Material:	7075-T6 Aluminum Alloy
Mount Material:	6061-T6 Aluminum Alloy
Finish:	Matte Black
Weight (Net):	41 g / 1.45 oz (Without Mount)

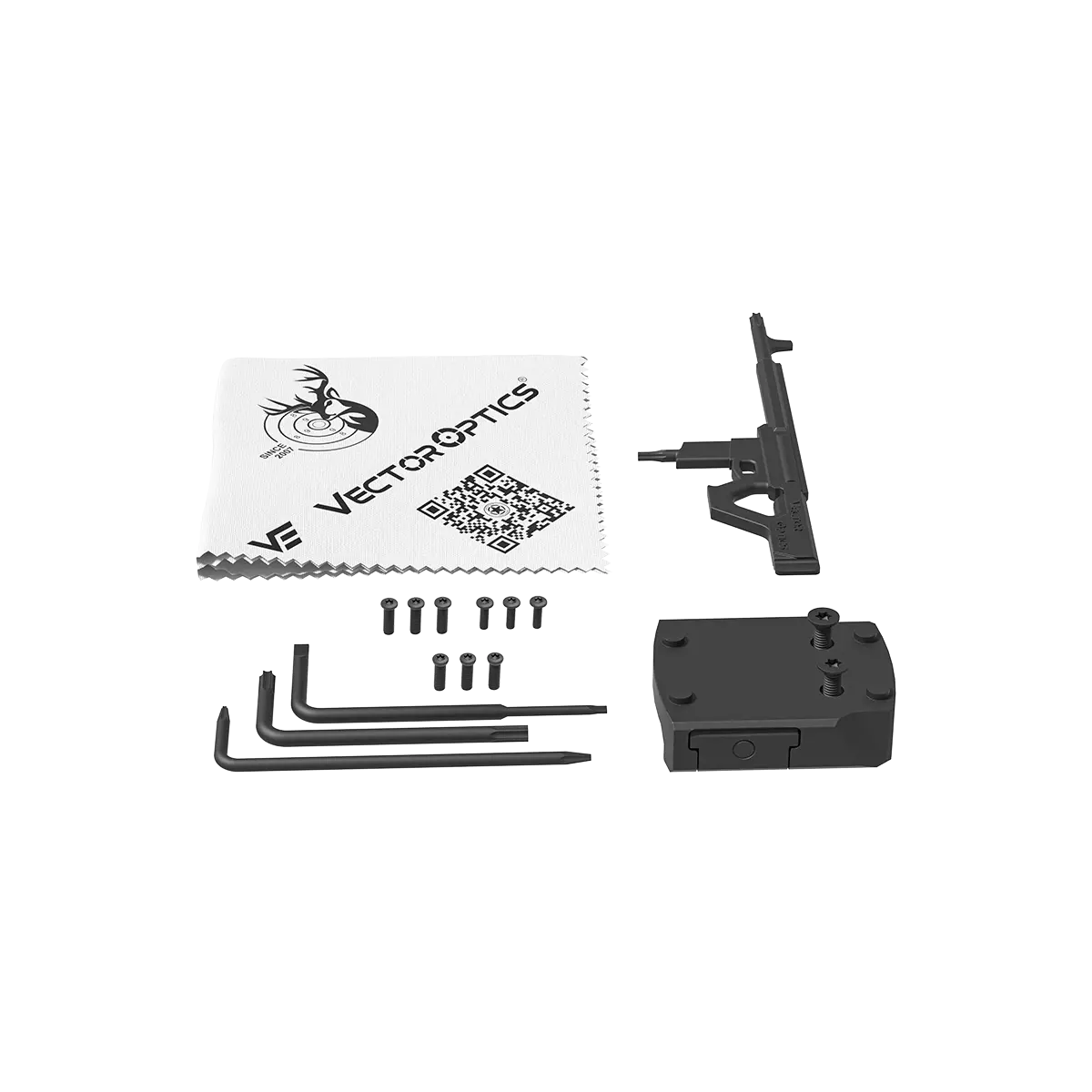

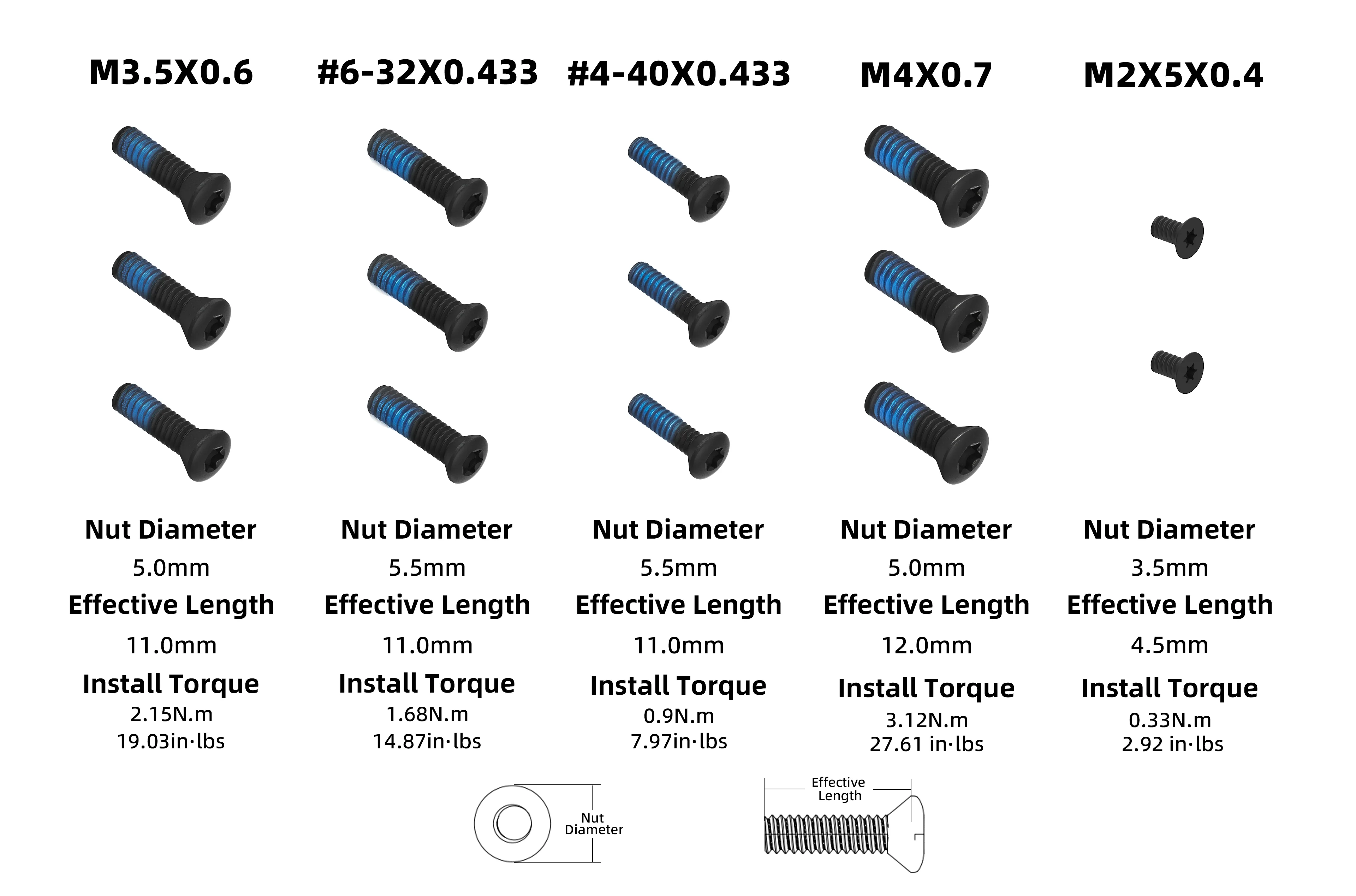

Items in the Package:	Hex Key, Vekey, Screws,Weave Mount, User Manual, Cleaning Cloth, etc.

Size

Footprint

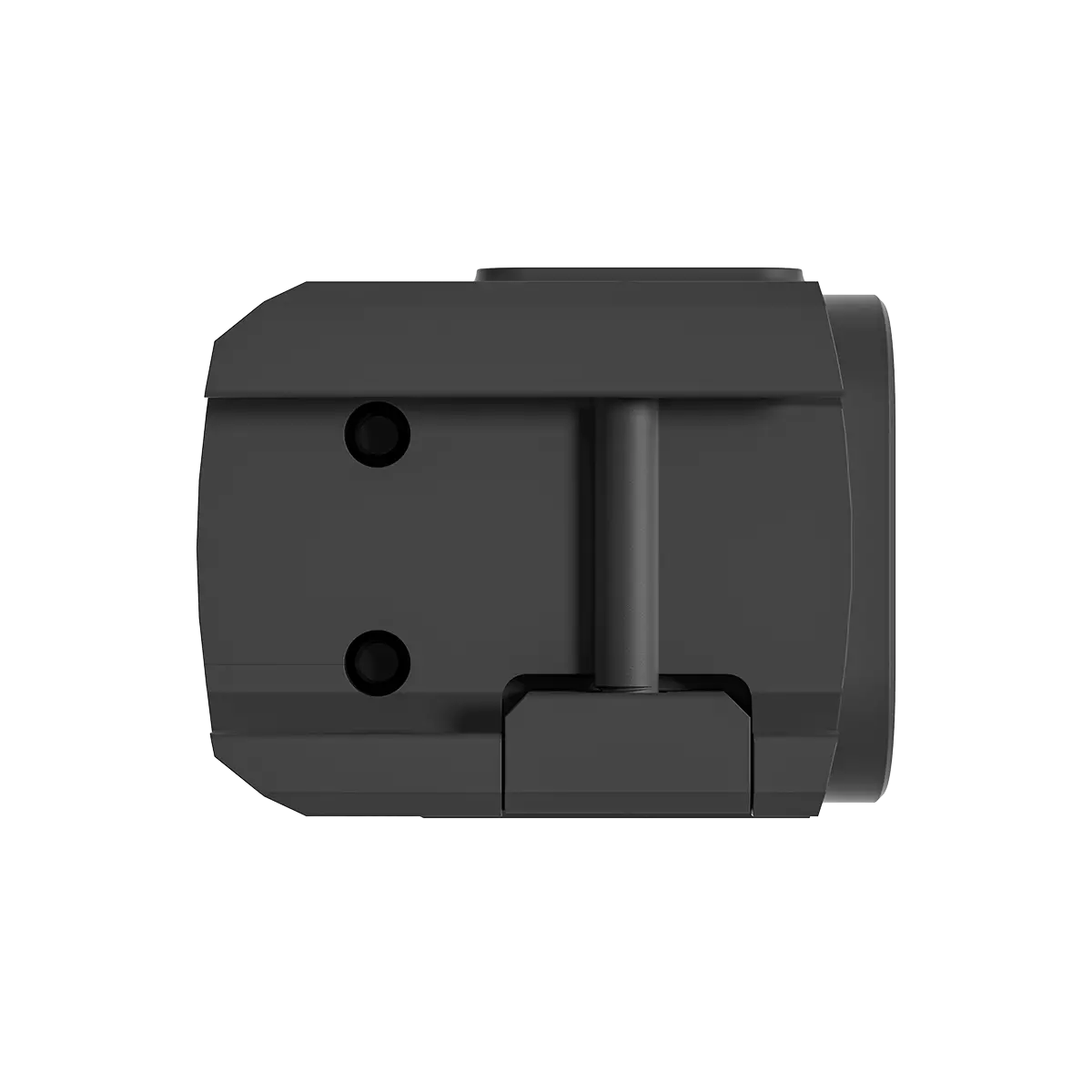

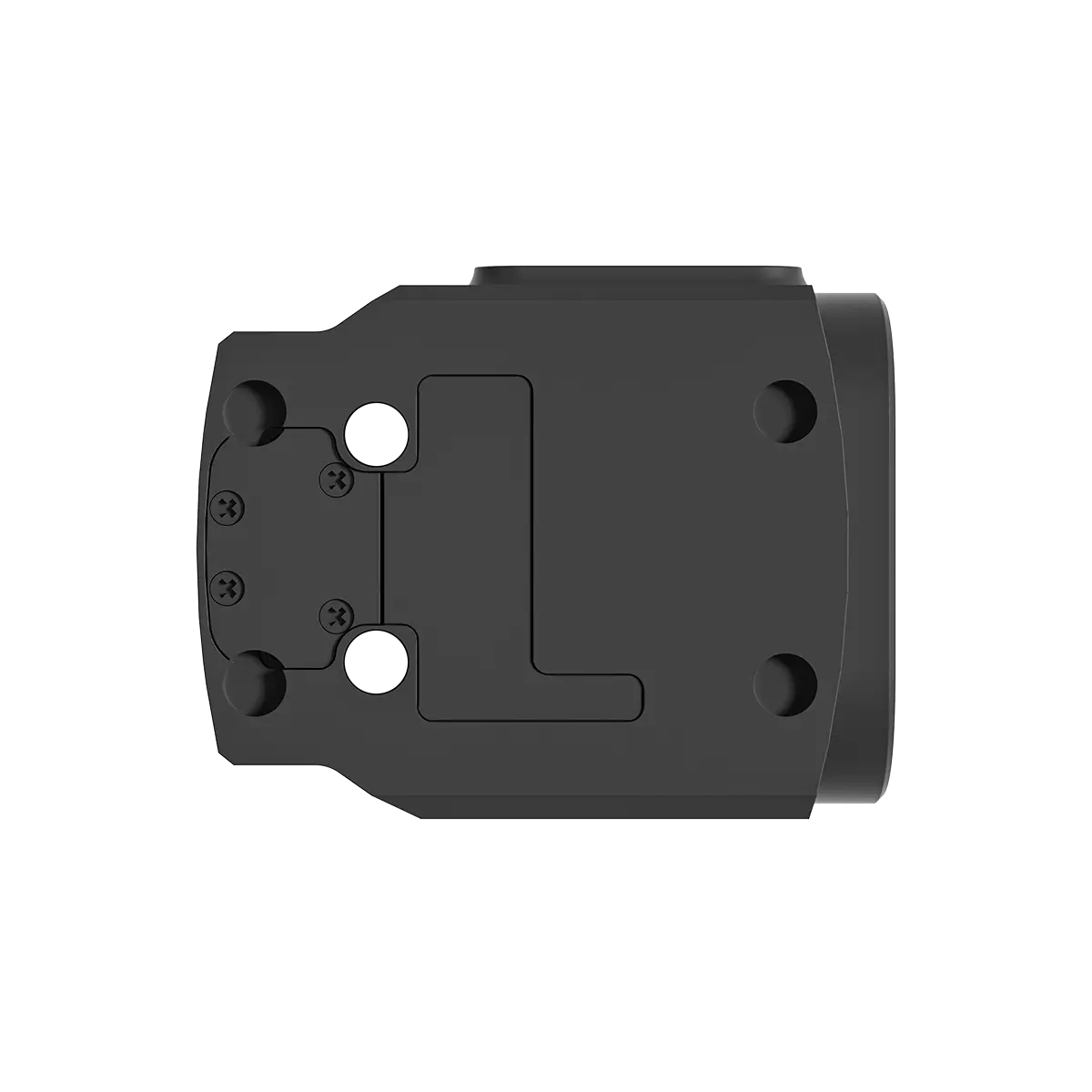

MGT Footprint

· Compatible Industry Standard: Shield RMSc / SMS

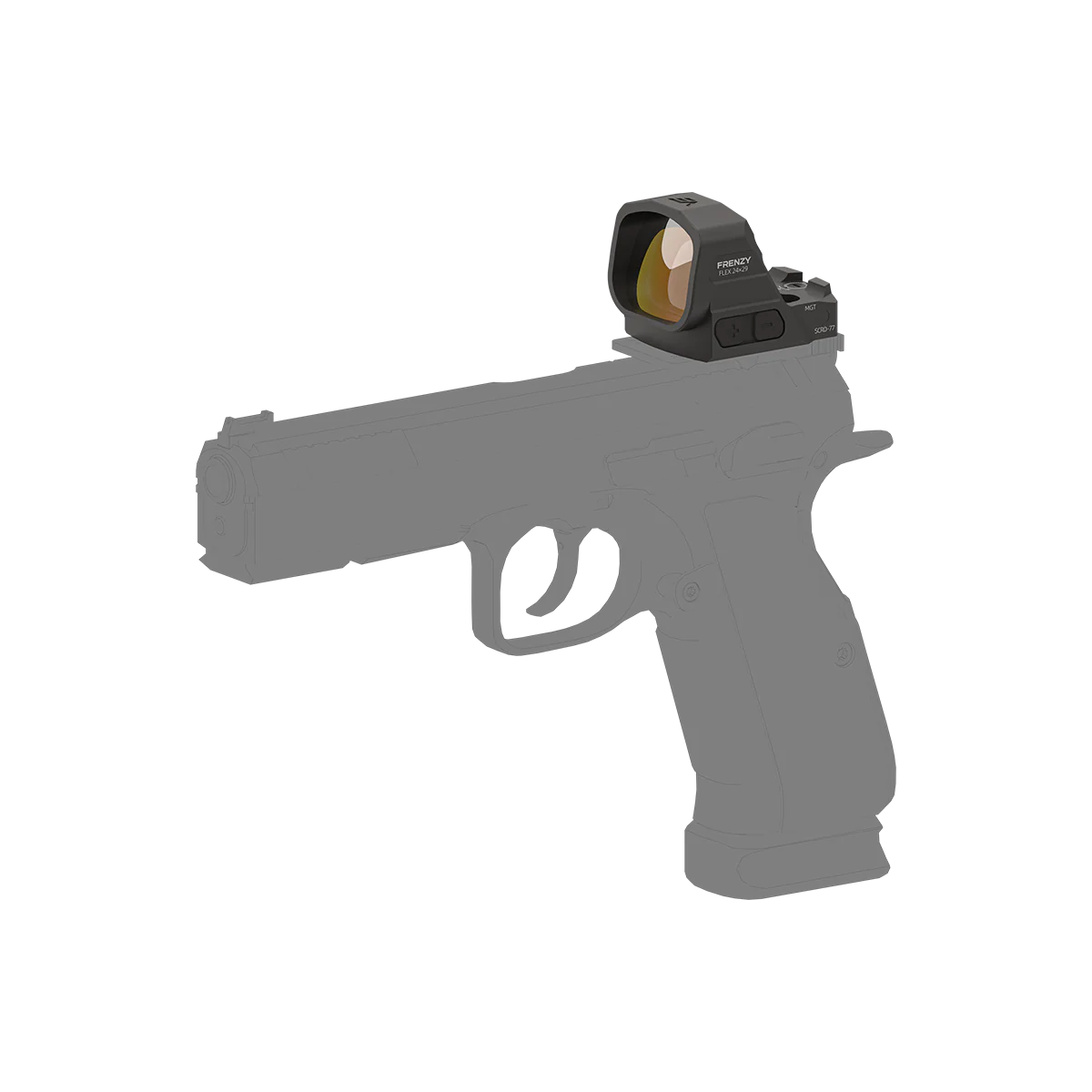

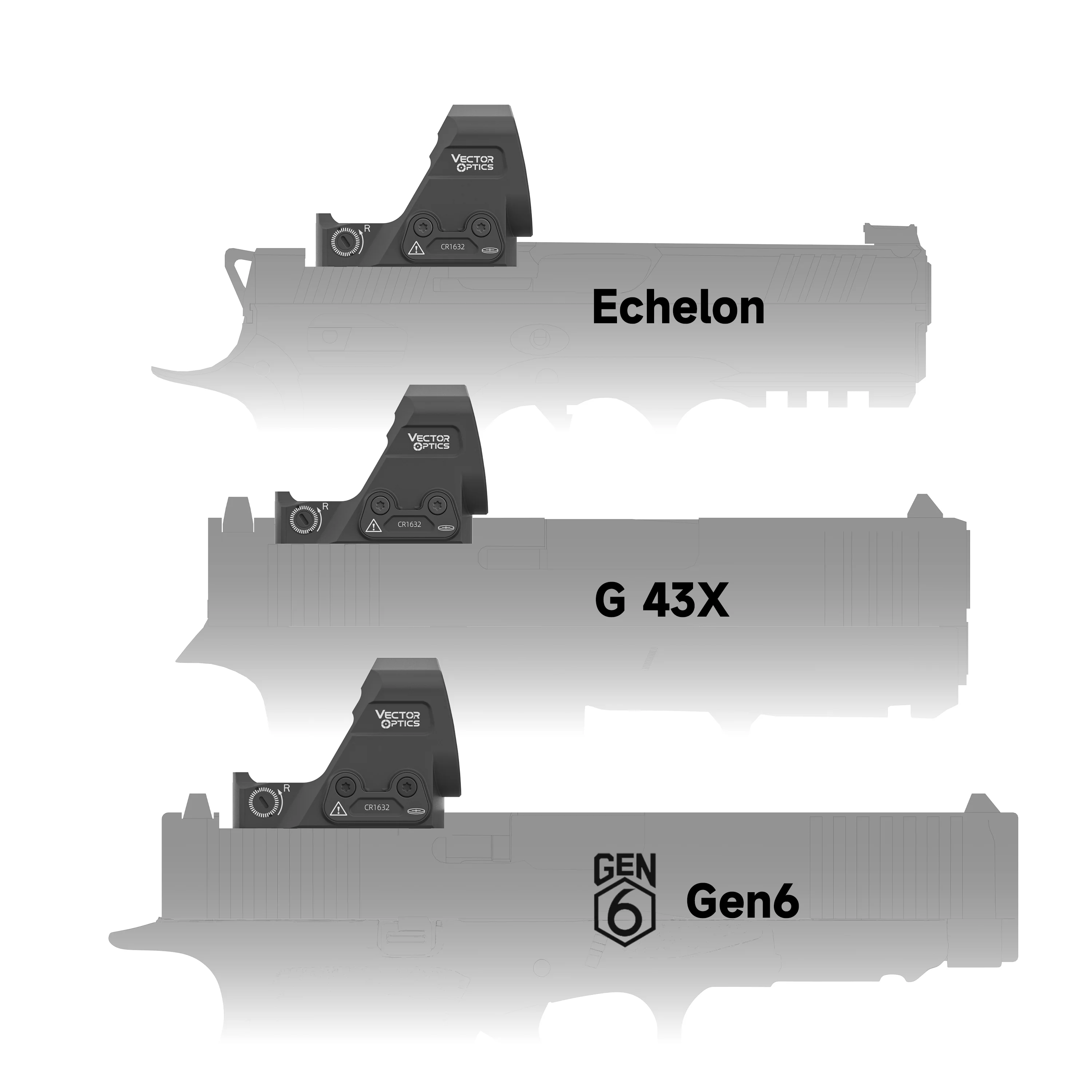

· Original Compatible Pistol Optics-Ready (O.R.) Model: GLOCK Standard MOS Gen4/5 with SCFRM-16 MOS to MAG adapter, GLOCK Slimline MOS(G48/G43X)(Direct), Canik®  TP9 / METE SFx (Direct), Walther PPS, Sig Sauer® P322/P365 (Direct), Springfield®  Hellcat (Direct), S&W® M&P® Shield Plus / Equalizer (Direct), S&W® M&P® M2.0 C.O.R.E. (w/ adapter plate), PSA Dagger and 5.7 Rock, Ruger®  Max-9, FN®  Reflex MRD (Direct), FN Herstal FN 502(w/ adapter plate), Canik Mete MC9L (Direct), kel-tec p17 OR(Direct), ect.

For more information about FOOTPRINT, please refer to the blog.

Download

SCRD-77 Frenzy FLEX Red Dot Sight User Manual
