Feature

• Precise Target Aiming: FFP VOR-4 MIL Reticle with 0.08 MIL Center Dot Delivers Clear Hold Points for Accurate Shots in the Field

• Bright, High-Contrast Optics: LaREE HD Lens with FMC Optics Provides Bright, Clear Images with Improved Light Transmission

• Wide Elevation Travel: 30mm Monotube Offers 23 MIL Elevation Range to Compensate for Bullet Drop at Extended Distances

• Reliable and Easy Controls: Zero Stop for Fast Return to Zero, 6-Level Illumination for Changing Light Conditions & Clear Reticle Visibility

Specification

See our Terminology Guide for detailed explanations of each specification.

Specification	Details
Magnification:	6-24X
Objective Lens Dia:	50 mm
Focal Plane:	First Focal Plane
Eye Relief:	95 mm
Lens Coating:	Fully Multi-coated
Linear Field of View @ 100 yd:	18.9-4.7 ft @100 yards
Linear Field of View @ 100 m:	6.3-1.5 m @100 meters
Angular Field of View °:	3.6-0.9°
Reticle:	VOR-4 MIL
Tube Dia:	30 mm

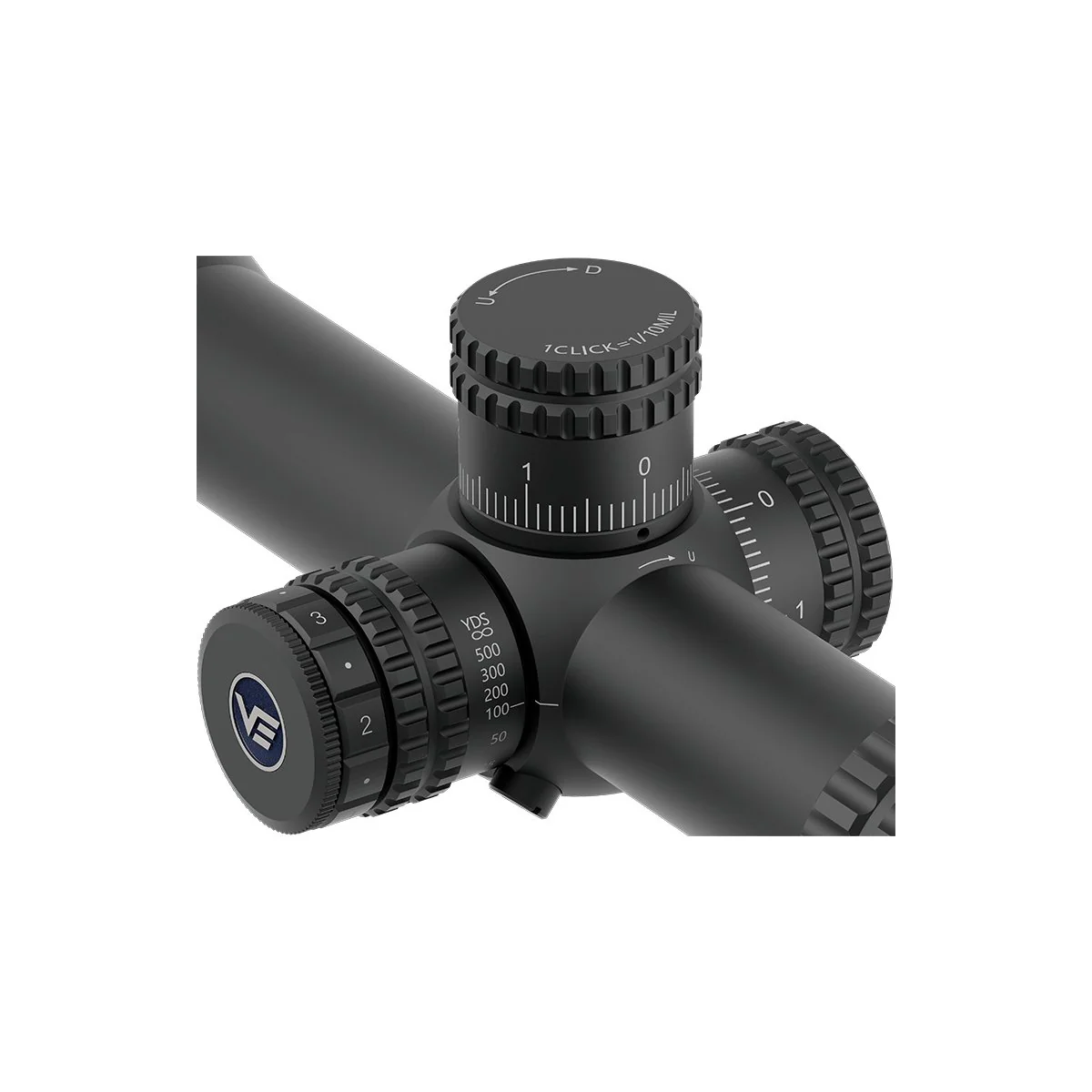

Side Focus:	10 yards to Infinity

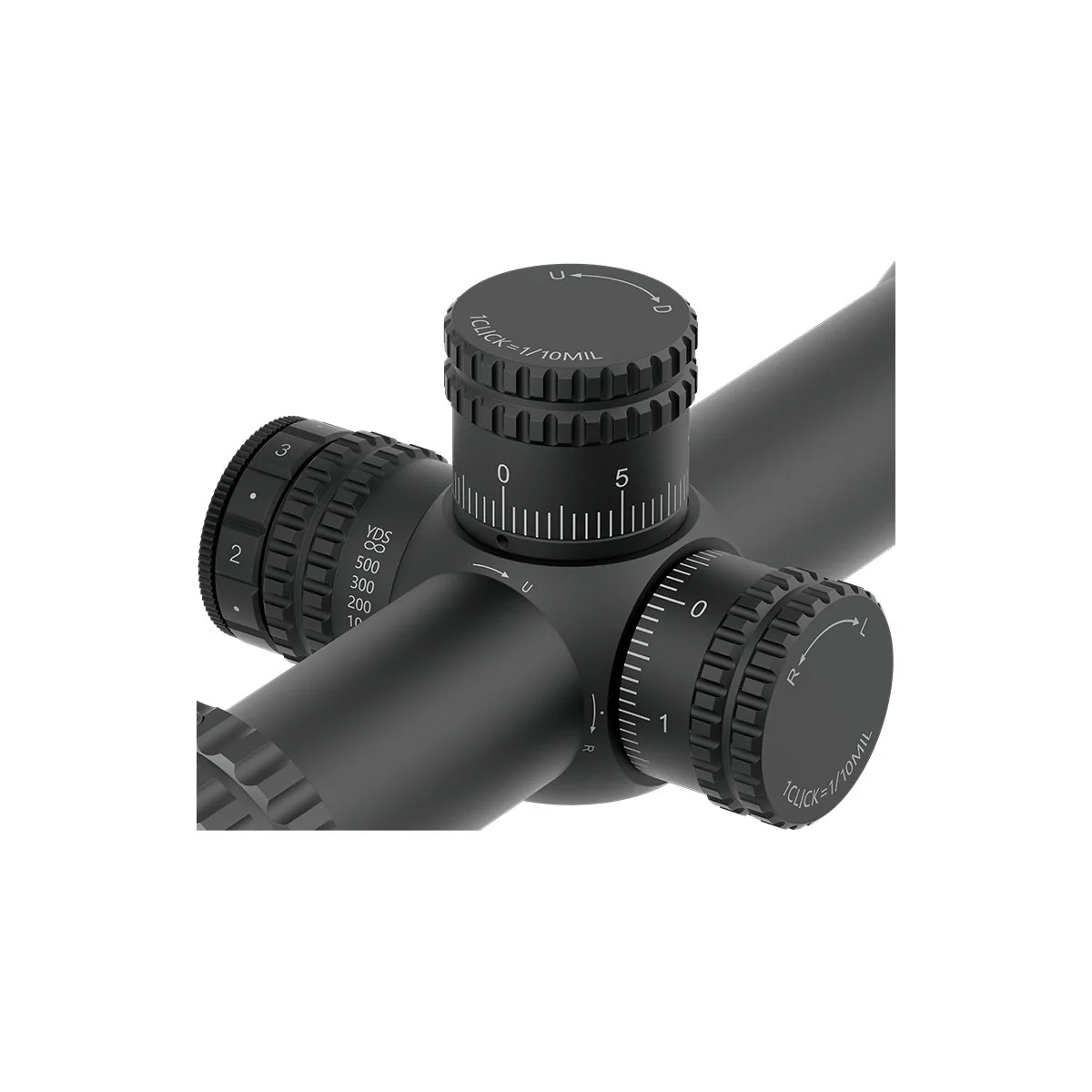

Click Value:	1/10 MIL
Turret Function:	Zero Stop
Elevation Adjustment Range:	23 MIL
Windage Adjustment Range:	18 MIL
Diopter Compensation:	-2 to +2
Illumination Setting:	6 Gears, On/Off Switch
Battery Type (Not Include):	CR2032 (NOT INCLUDE)
Battery Life:	N/A
Waterproof:	IPX4
Fogproof:	Nitrogen Filled
Shockproof:	750 G
Housing Material:	6061 T6 Aluminum Alloy
Finish:	Matte Black
Length:	353 mm / 13.9 in
Weight:	756 g / 26.6 oz
Items in the Package:	User Manual, Cleaning Cloth, Flip-up Caps, Power Throw Lever, Sunshade, Hex Keys, etc.

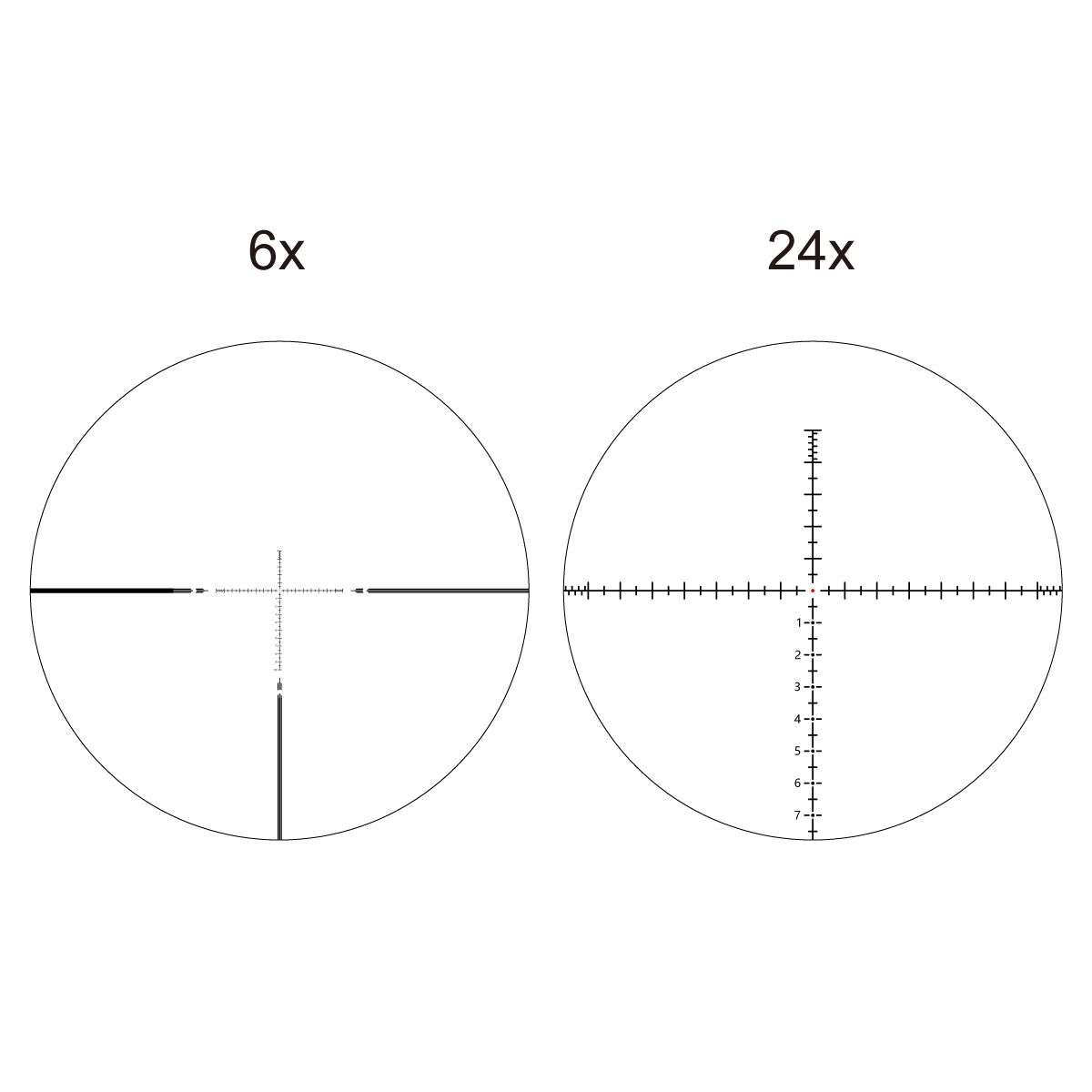

Reticle

VOR-4 Etched Glass Reticle for Tactical Use, Benchrest, and Long-Range Shooting and Mountain Hunting

0.8 Mil Center Dot for Long-Range Targeting

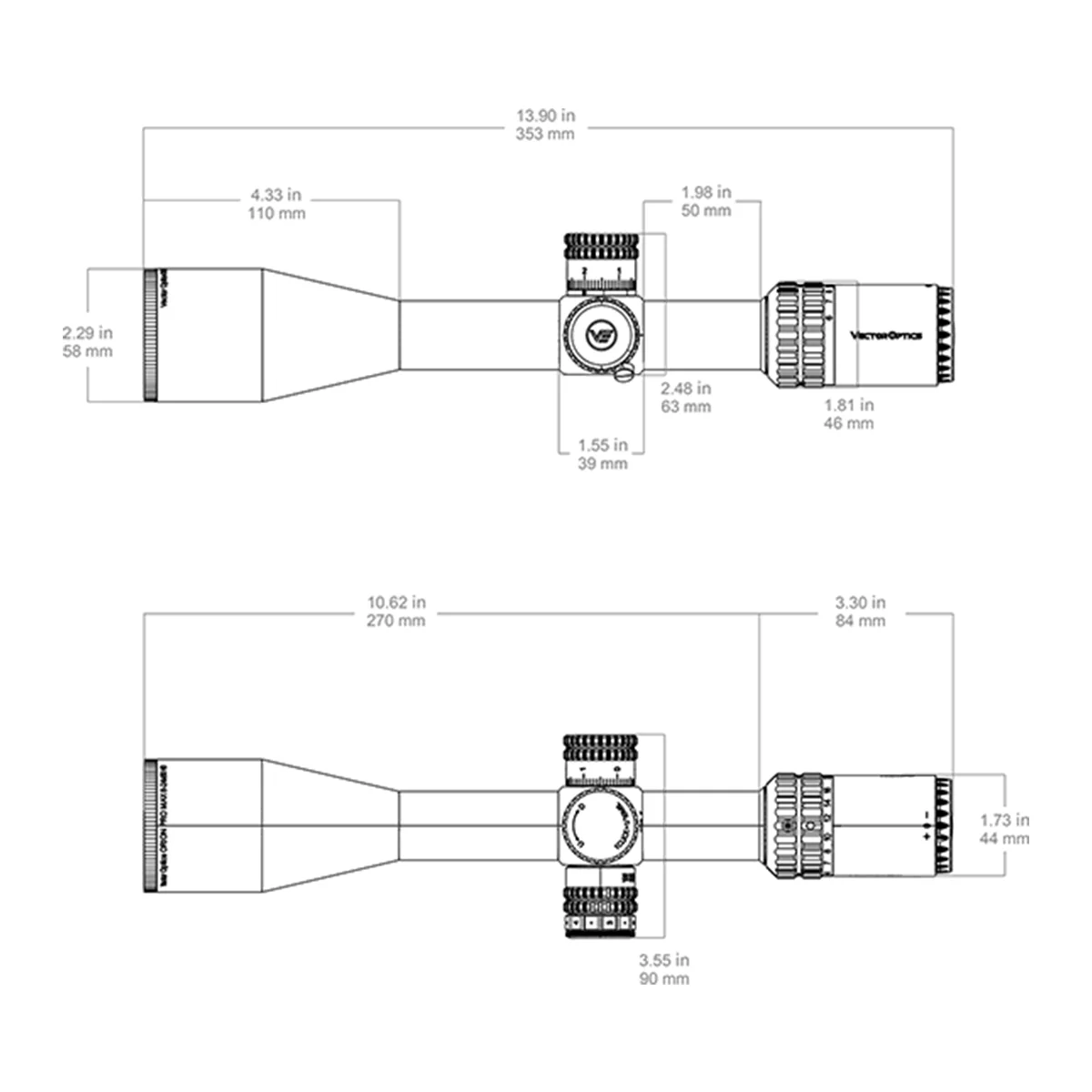

Size

Compatible Gun Type

For Long-Range: Tikka T1x / T3 / T3x (.22LR / .308), Remington 700 / 783 (.223), Sako, Anschutz, Howa, FX Impact M3 / MKII, AirForce Texan, CZ 457, Accuracy International, Cadex, Sako TRG, Steyr, etc.

For Mountain Hunting: Tikka T3x Lite, Sako 85 / Remington 700, Howa Mini Action, etc.
