Description

4”Long Eye Relief w/ Wide F.O.V

Edge-to-Edge Image

True 4x Zoom Factor 1” Monotube in Rugged Construction

Center Dot w/ 10 Levels R Plus 1 Level NV(GT Only)

Resettable Zero 1/4 MOA Turrets

Free Lens Cover & 1”mm Scope Rings

Relations



Feature

· Fully Multi Coated

· Edge-to-Edge Image

· Wide Filed of View

· Side Focus Min 10 Yds

· 4x Zoom Factor

· 4 Inch Long Eye Relief

· 25.4mm 1 Inch Monotube Made of 6061 T6

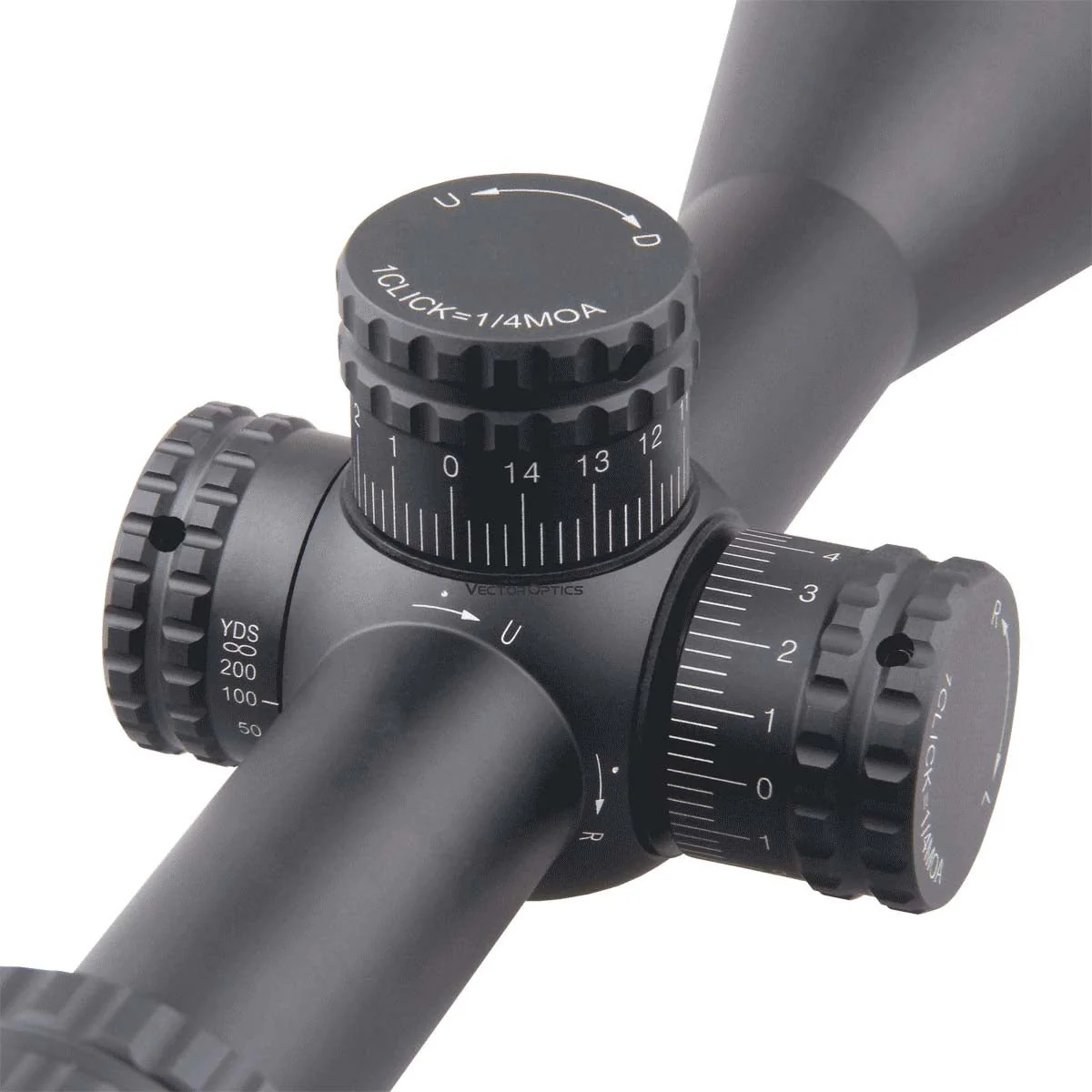

· 1/4MOA Zero Reset & Turret Lock

· Etched Glass BDC Reticle

· Center Dot Illuminated



Reticle





Specification

· Magnification: 3-12x

· Objective Lens Dia.: 44mm

· Ocular Lens Dia.: 38mm / 1.5 inch

· Ocular Lens Length: 60mm / 2.4 inch

· Exit Pupil: 14.6-4.0mm

· Optics Coating: Fully-multi coat

· Field of View: 31.5-7.9 feet@100 yds

· Eye Relief: 105--100mm / 4.1-3.9 inch

· Length: 325mm / 12.8 inch

· Weight: 620g / 21.9 ounce

· Tube Dia.: 25.4mm 1“ Monotube

· Click Value: 1/4 MOA

· Elevation Range: 60MOA

· Windage Range: 60MOA

· Parallax Setting: 10 yards to infinite

· Reticle: VOI-10BDC

· Illumination: 11 levels red+ 1 level NV

· Battery Type: CR2032

· BDC & ranging reticle usage set at 10x power, big game, 22LR Rimfire and varmint rifles max to 600 yards range

· Distance between objective lens part and middle turret: 48mm (1.9 inch)

· Length of middle turret part: 37mm (1.5 inch)

· Distance between middle turret part to power ring: 57mm (2.2 inch)

· Side focus marks: 10, 15, 25, 50, 100, 200 and infinite yds

· Shock tested to 750g and water proof

· Fully nitrogen purged to eliminate any fogging of the lenses internally

· High quality 6061 T6 aircraft grade aluminum

· Diopter compensation from fast-focus eyepiece (+2 to -2)

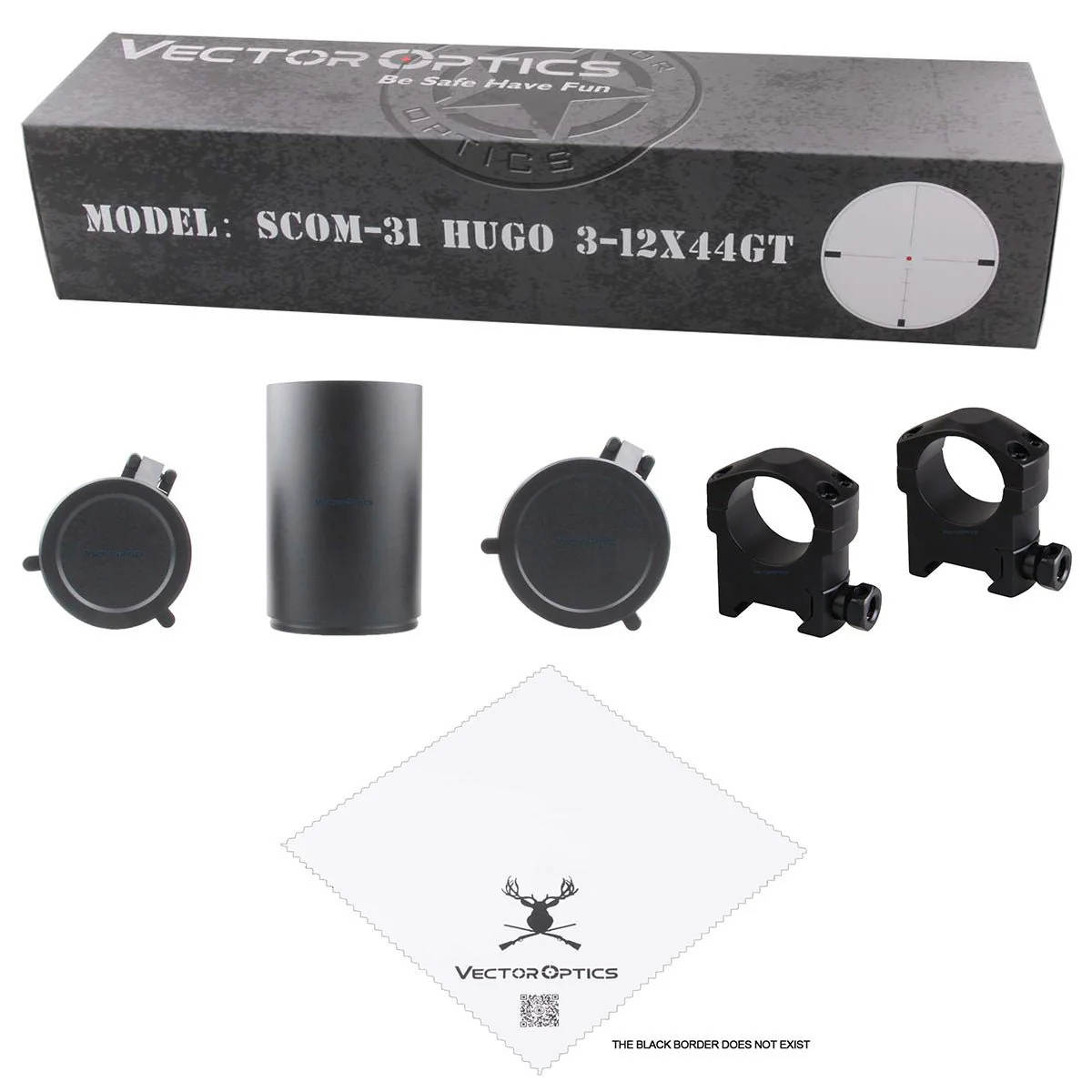

· Including items: weaver rings (default) or dovetail rings, lens caps, sunshade and cleaning cloth etc.
