Feature

· SFP VSE-7 MOA Etched Glass Reticle w/ 0.25MOA Illuminated Floating Dot, Christmas Tree Pattern for Fast Follow-Up Correction

· Fully Multi-Coated 50mm Objective Lens Improves Light Transmission for a Clear, Edge-to-Edge Sight Picture in Benchrest Shooting

· 30mm Tube Dia Enhances Elevation Range to 80 MOA, 1/4 MOA Click Value for Precise Adjustment, Side Focus Min from 10 Yds

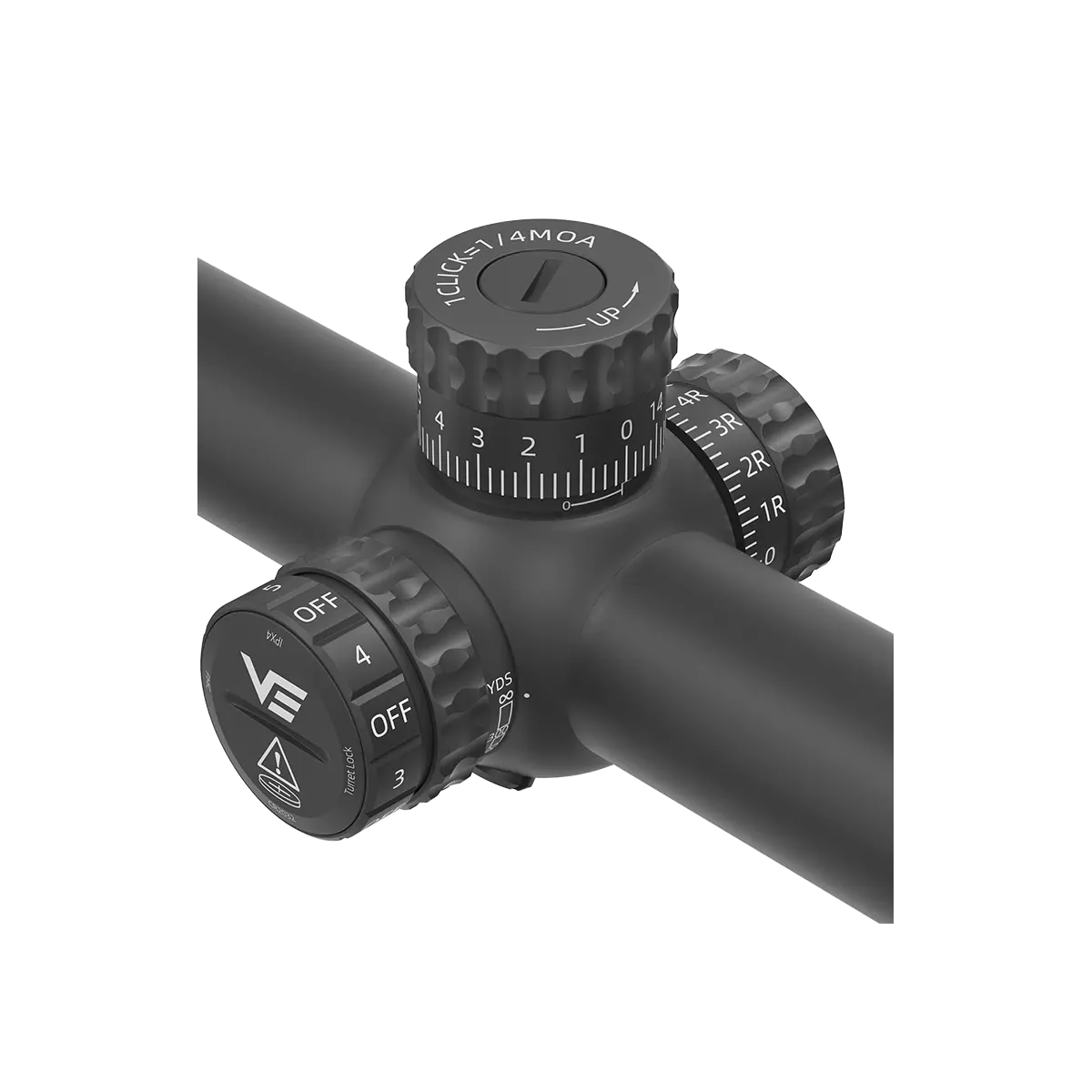

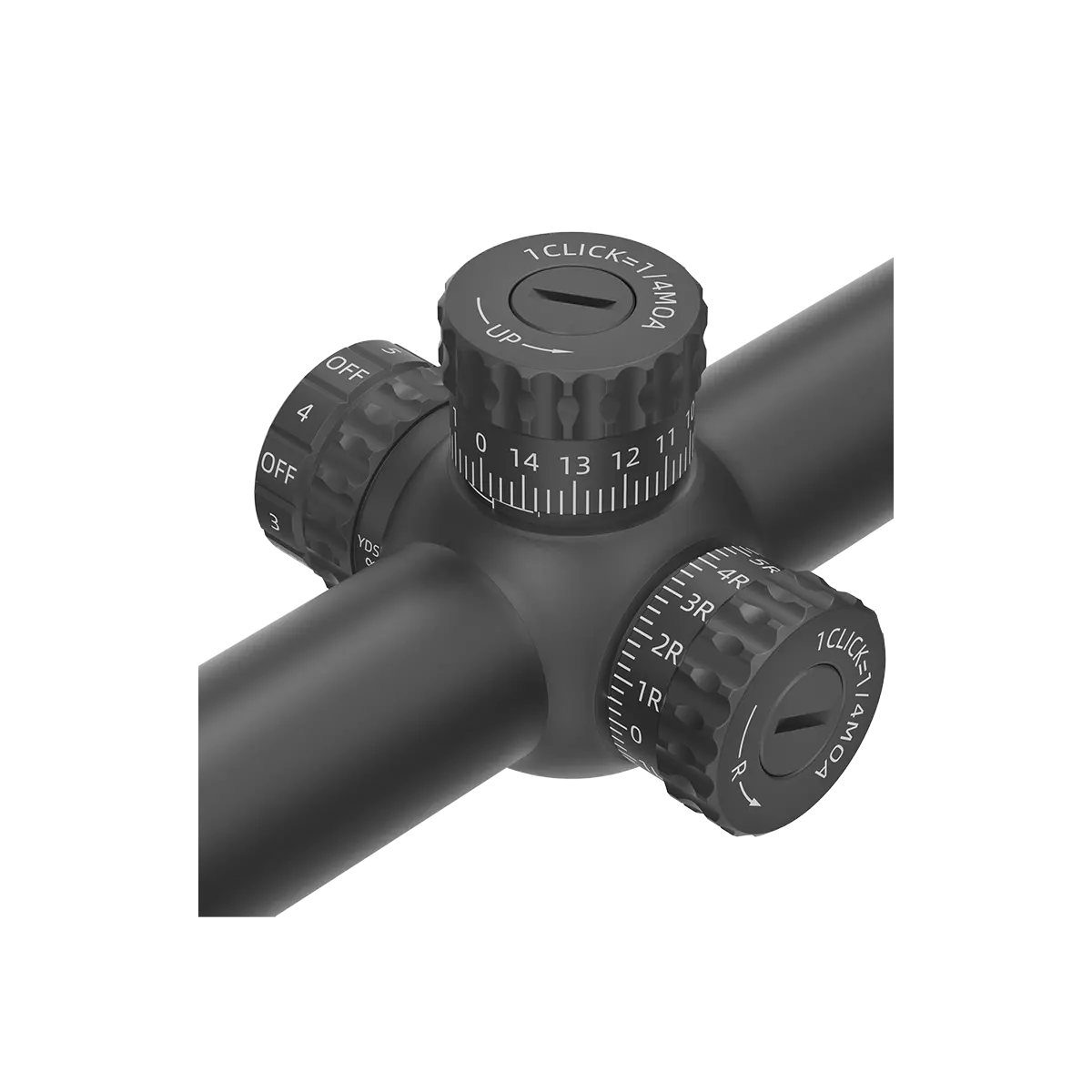

· Elevation Zero Stop with Revolution Indicator Enables Easy Zero Return, While Windage Turret Lock Prevents Accidental Shift

Specification

Specification	Details
Magnification:	6-24x
Objective Lens Dia:	50 mm
Focal Plane:	Second Focal Plane
Eye Relief:	95 mm / 3.74 in
Lens Coating:	Fully Multi-Coated
Linear Field of View @ 100 yd:	18.3-4.6 ft @ 100 yards
Linear Field of View @ 100 m:	6.1-1.53 m @ 100 meters
Angular Field of View:	3.5-0.88°
Reticle:	VSE-7 MOA
Tube Dia:	30 mm
Side Focus:	10 yards to Infinity
Click Value:	1/4 MOA
Turret Function:	Elevation Zero Stop & Revolution Indicator; Windage Turret Lock
Elevation Adjustment Range:	≥80 MOA
Windage Adjustment Range:	≥50 MOA
Diopter Compensation:	-2 to +2
Illumination Setting:	6 Gears Red, On/Off Switch
Battery Type (Not Include):	CR2032
Waterproof:	IPX4
Fogproof:	Nitrogen Filled
Shockproof:	750 G
Housing Material:	6063-T6 Aluminum Alloy
Finish:	Matte Black
Length:	354 mm / 13.94 in
Weight:	728 g / 25.68 oz

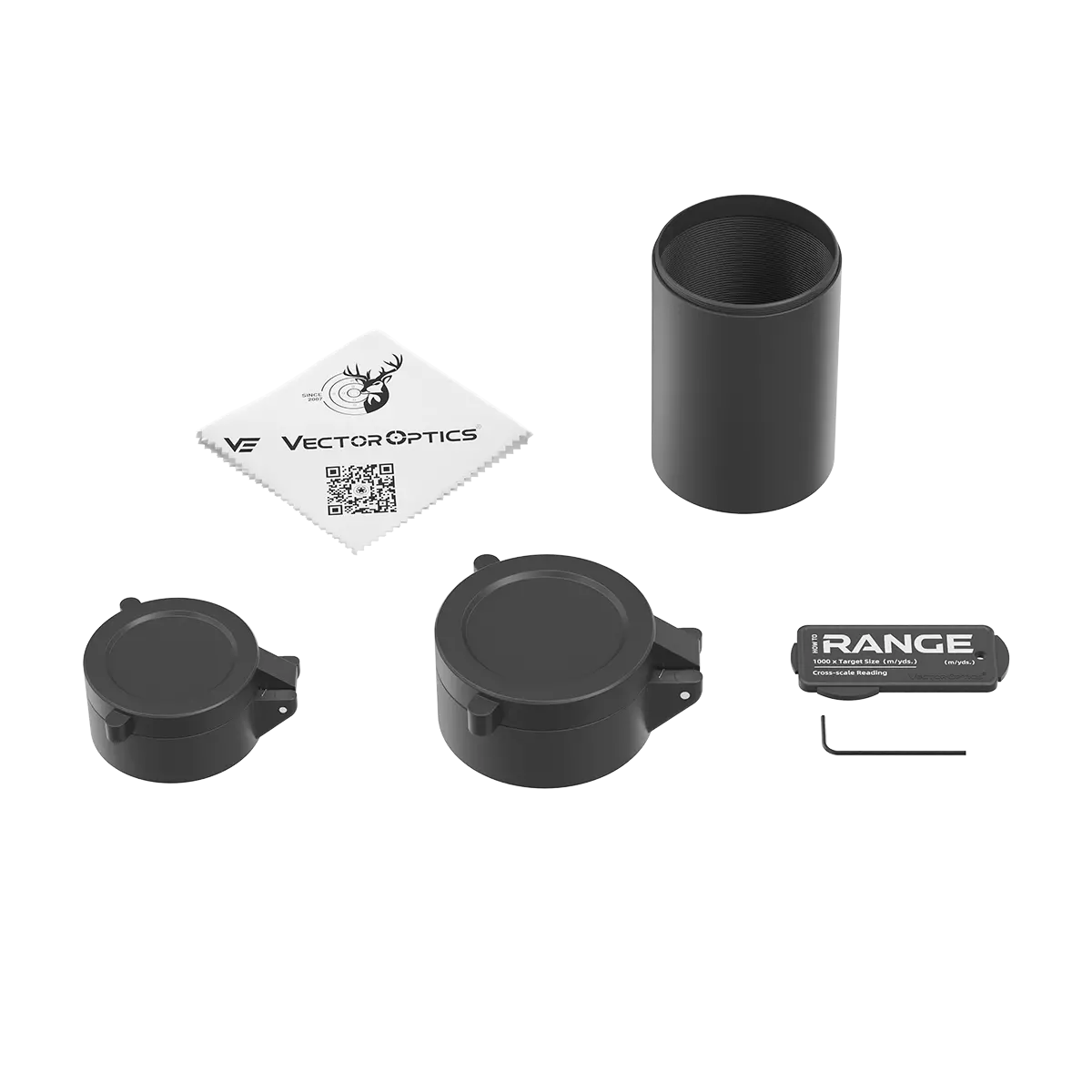

Items in the Package:	User Manual, Plastic Wrench, Cleaning Cloth, Flip-up Caps, Hex Key, Sunshade, etc.

Size

Reticle

Download

Sentinel User Manual
