Feature

• Accurate Target Aiming: MPR‑V5 Etched Reticle with Quick Target Pickup and a 0.1 MIL Center Dot for Precise Aiming at Distance

• Clear and Bright Viewing: Fully Multi‑Coated Optics Deliver Bright, Clear Images for Confident Target Identification in the Field

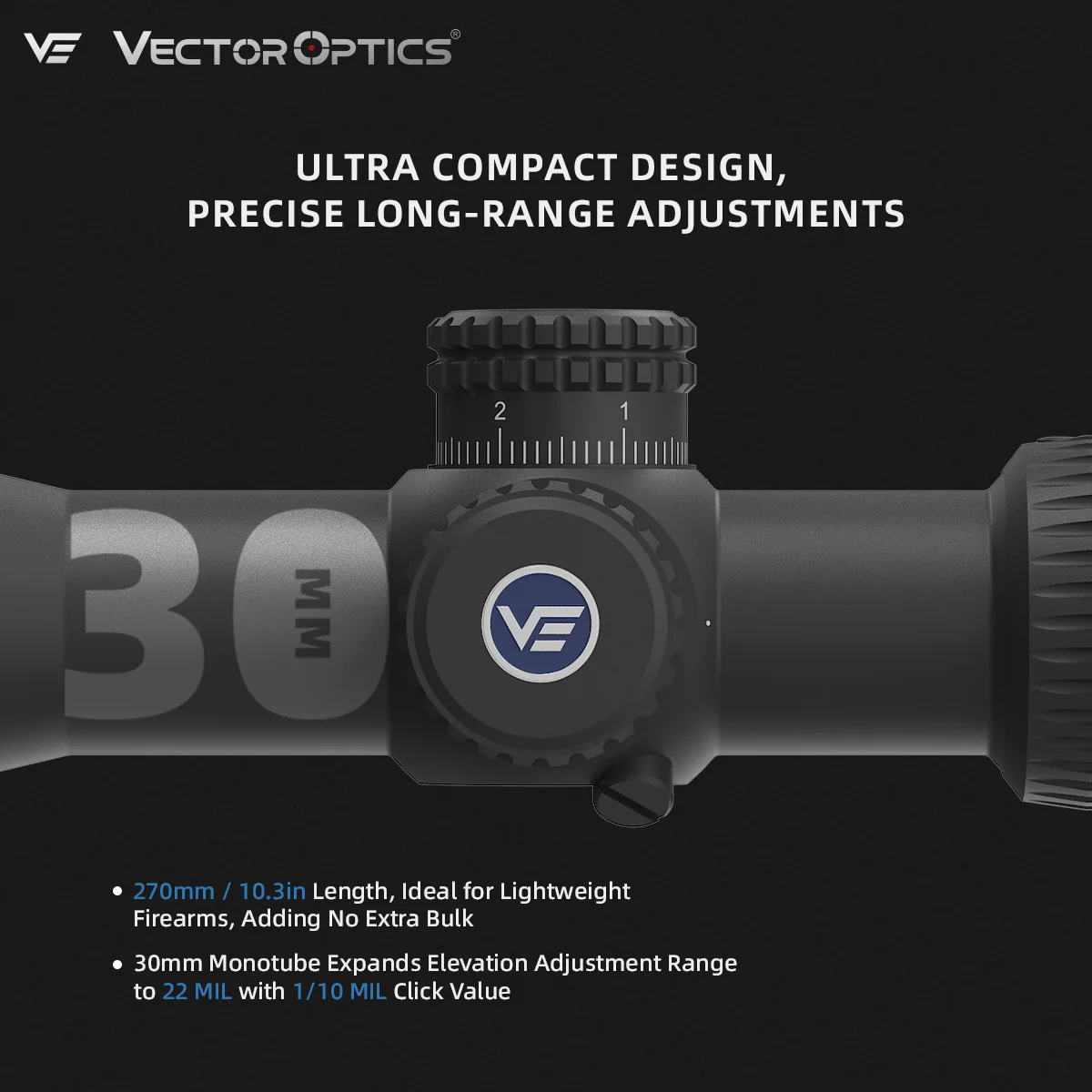

• Precise Long‑Range Adjustments: 30 mm Monotube Offers 22 MIL Elevation Travel with Clean, Repeatable 1/10 MIL Clicks

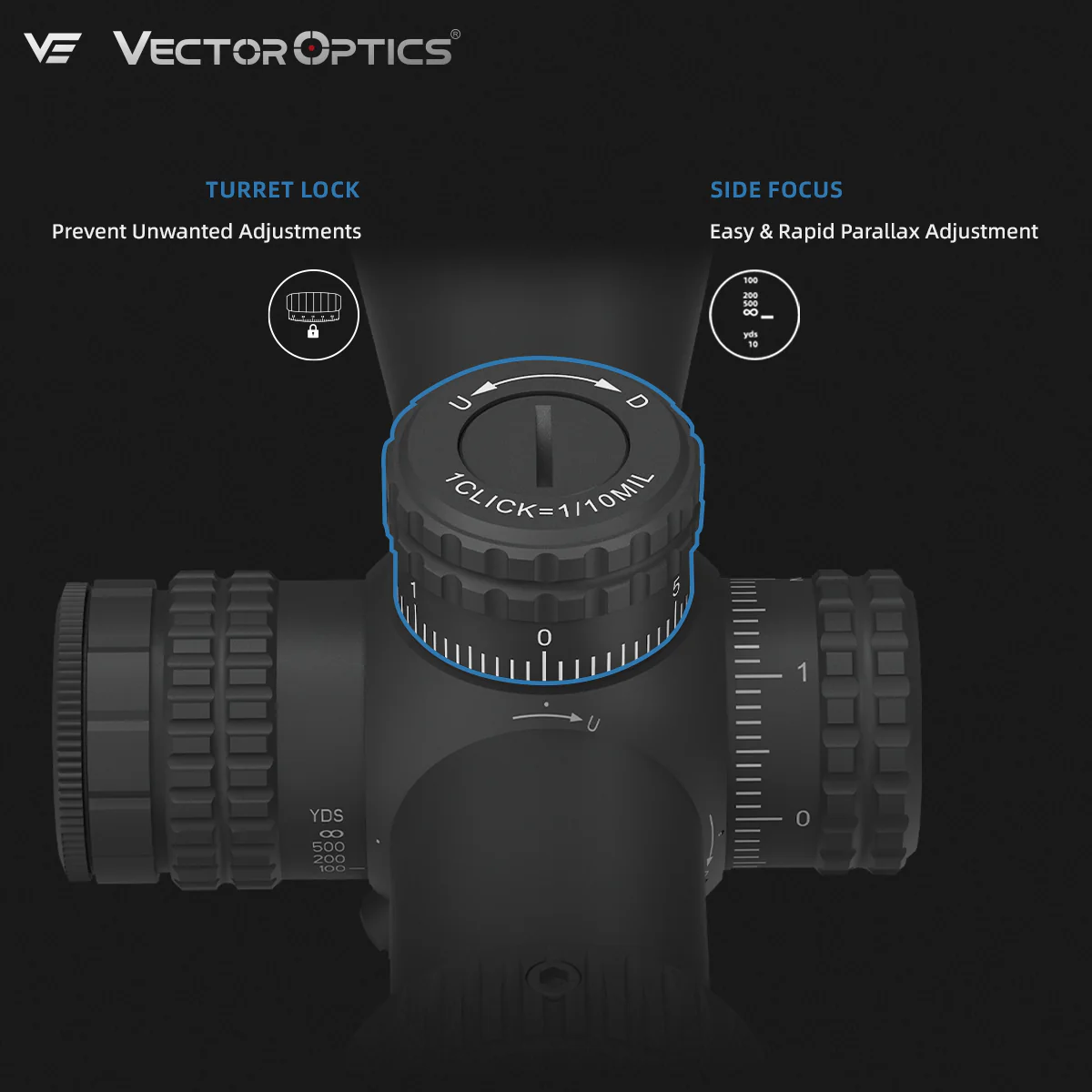

• Flexible Focus and Secure Control: Side Focus from 10 Yds for Close‑to‑Long Range Use, Turret Lock Prevents Unwanted Shifts

Reticle

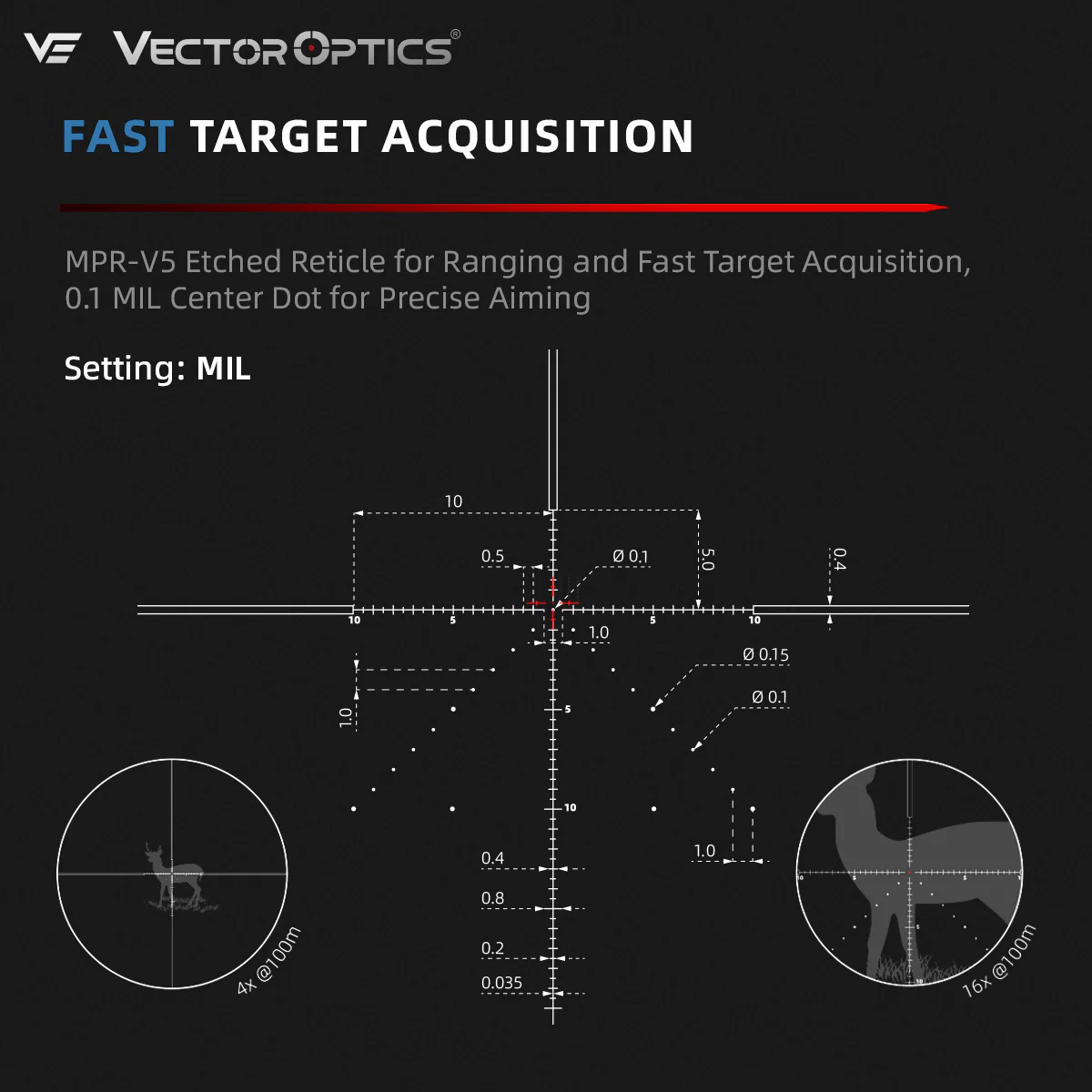

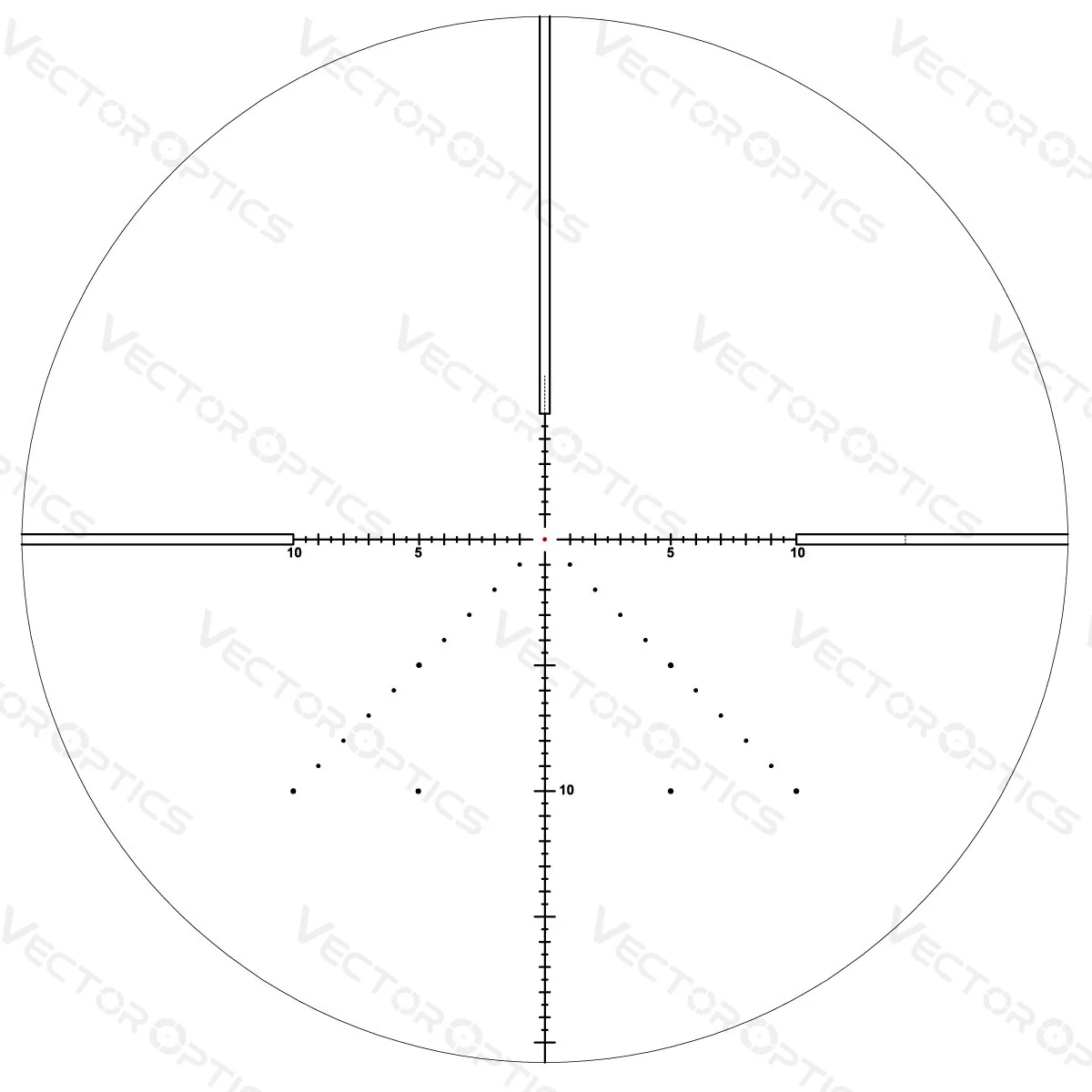

Break Barrel Air Rifle Scope Reticle : MPR-V5

· Scenario: Field Target Shooting, Plinking, Break Barrel Air Rifle

· For ranging and fast target acquisition

· Cascading dot for a 10 m.p.h crosswind

· 0.1 MIL center dot for precise aiming

· 0.5 MIL hashmark increment

· BDC for .223 zero @ 200yds and .308 zero @100yds

Specification

See our Terminology Guide for detailed explanations of each specification.

Magnification: 4-16x

Objective Lens Dia: 44mm

Ocular Lens Dia: 33mm

Ocular Lens Length: 35mm

Exit Pupil: 11-2.75mm

Optics Coating: Fully-multi coated

Field of View: 26.2-6.55 feet@ 100 yds

Field of View: 5.0-1.25°

Eye Relief: 90-85mm (3.5-3.4")

Length: 270mm / 10.6"

Weight: 530g / 18.7oz

Tube Dia: 30mm Monotube

Click Value: 1/10MIL, 1cm

Elevation Range: 22MIL

Windage Rang: 17.5MIL

Parallax Adjustment: 10 Yards to infinite

Reticle: Etched Glass MPR-V5

Finish: Black Matte

Illumination: Six gear

Distance between objective lens part and middle turret: 40mm (1.6 inch)

Length of middle turret part: 37mm (1.4 inch)

Distance between middle turret part to power ring: 32mm (1.3 inch)

Shock tested to 750g, IPX4

Fully nitrogen purged to eliminate any fogging of the lenses internally

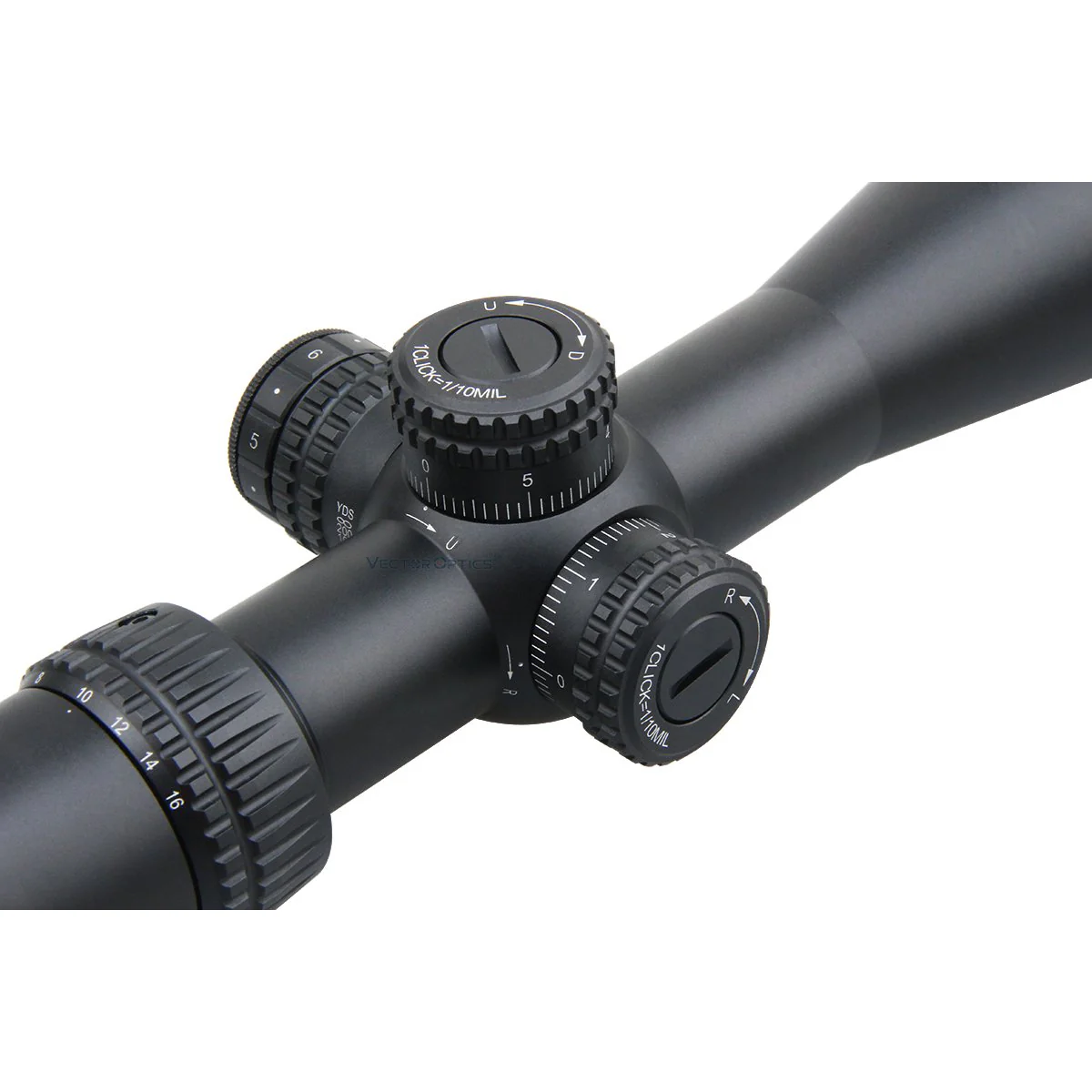

Turret Lock System

High quality 6061 T6 aircraft grade aluminum

Focus mark: 10, 15, 25, 50, 100, 200 and infinite

Diopter compensation from fast-focus eyepiece (+2 to -2)

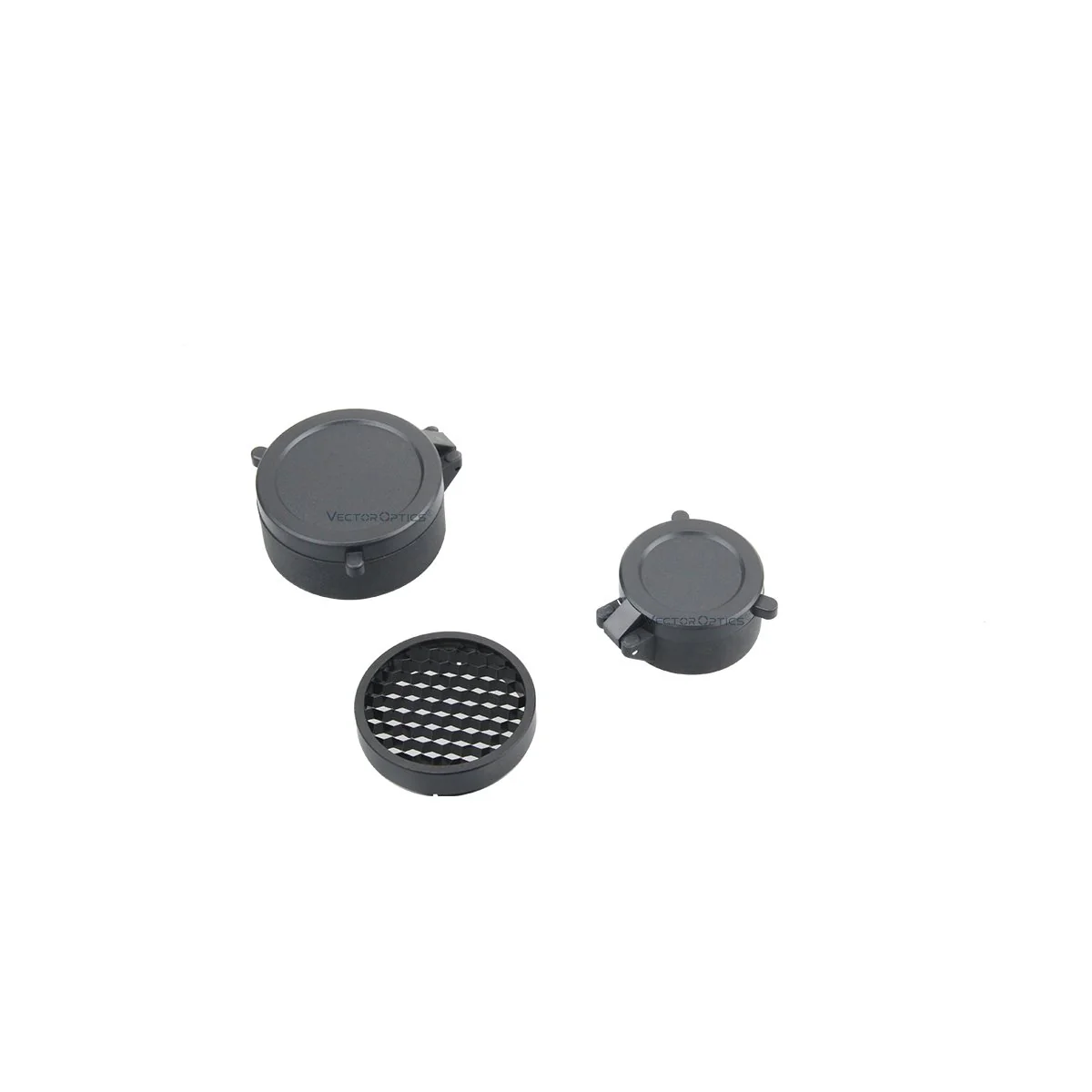

Including items: 30mm weaver, flip-up caps, honeycomb sunshade and cleaning cloth etc.

Compatible Gun Type

Field Target Shooting: FX Impact / Daystate / Walther LGU, HW97 / HW100, etc.

For Plinking:Airgun (FX, Walther, HW), Ruger 10/22, Barra / HW, Glock / CZ75, etc.
